VisionLab allows full-featured computer vision applications with almost zero lines of code!


  • Capture
  • Detect Objects
  • Track Targets
  • Alarm
  • Record
  • Display


What can I build with VisionLab?

VisionLab allows rapid development of fully featured computer vision applications for the security industry, scientific and other applications. It also includes Hough Lines, edge detection, contour detection, Haar face and object detection, robust features, and target detecting/tracking components.



Applications include:  capture and detect motion, capture and track moving targets in video, detect contours and objects in video, real time data acquisition, process control, artificial intelligence, signal analysis, digital signal analysis, video analysis, data visualization, visual instrumentation and more.

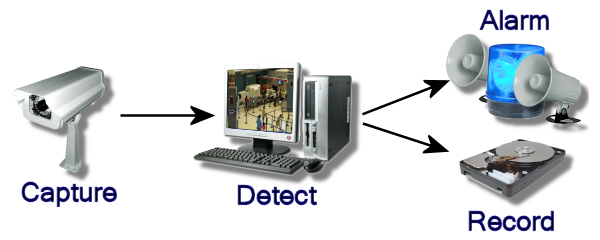

Capture and detect motion:
/system/imgs/21/original/DetectMotion.jpg?1311866894

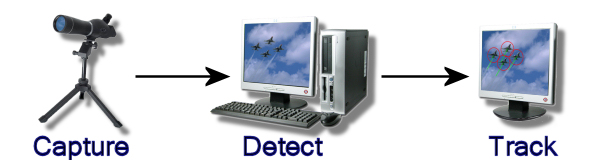

Capture, detect and track targets:

/system/imgs/23/original/TargetTracking.jpg?1311866949

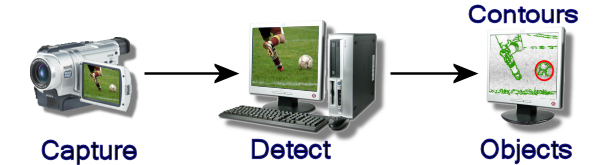

Capture and detect contours and objects in the video:

/system/imgs/22/original/ContourDetect.jpg?1311866923


VisionLab includes a full set of video capturing components. They support the old fashion Win32 API( Video For Windows ( VFW ), WaveAPI, Audio ACM), the newer DirectShow, and even allows if needed any mixture of them. The developer can choose to go with any of them, to use all, or can switch from the one to the other at any moment. The components hide the complexity of all of the approaches, and make them look almost identical from the users prospective.

Here is the full list of the supported technologies:

Win32 API:
  • Video For Windows ( VFW )
  • Audio Compression Manager ( ACM )
  • WaveAPI

DirectX:
  • DirectShow

Intel:
  • Intel MMX
  • Intel Performance Primitives ( IPP )

The library includes Motion Detection component, Hough Lines and Circles components, Canny and Adaptive Threshold edge detectors, contour detector, Haar face and object detector, target finding and tracking components, robust features component, Video Display, and DirectShow video Render, a Win32 API and DirectShow Video Capture component. Number of additional component from the SignalLab, and from AudioLab are included to allow basic audio processing.

VisionLab: for full-featured motion detection applications with almost zero lines of code!
Delphi 2010 C++ Builder 2010 RAD Studio 2010 Delphi Prism

Audio Filters

ALAudioToReal ALAudioToReal Converts Wave Audio Data Buffers into Real Data Buffers
ALGenericFilter ALGenericFilter User defined filter for Audio data

Audio generators

ALGenericGen ALGenericGen User defined generator for Audio data

Audio output components

ALAudioOut ALAudioOut Sends audio data to an audio output device

Color transformations

VLGrayScale VLGrayScale Converts the video to gray scale

Computer Vision

VLMotionDetect VLMotionDetect Motion detection component
VLCanny VLCanny Canny edge detection
VLHoughLines VLHoughLines Finds lines in the image using Hough transform
VLFindContours VLFindContours Finds contours in binary image
VLAdaptiveThreshold VLAdaptiveThreshold Adaptive threshold edge detection
VLProbableLines VLProbableLines Finds probable line segments in the image using Hough transform
VLHoughCircles VLHoughCircles Finds circles in the image using Hough transform
VLFindTargets VLFindTargets Finds possible tracking targets in the image
VLTrackTargets VLTrackTargets Tracks moving targets on the image
VLExtractRobustFeatures VLExtractRobustFeatures Extracts robust features using SURF algorithm
VLHaarDetectObjects VLHaarDetectObjects Detects objects by using Haar like features
VLConnectedComponents VLConnectedComponents Labels connected components in the image
VLConvexHulls VLConvexHulls Finds the convex hulls for polygons or contours.
VLMinEnclosingCircles VLMinEnclosingCircles Finds the smallest enclosing circles for polygons or contours.
VLMinAreaRectangles VLMinAreaRectangles Finds the smallest area rectangles for polygons or contours.
VLFitLines VLFitLines Fits lines to polygons or contours.
VLFitEllipses VLFitEllipses Fits ellipses to polygons or contours.
VLChamferMatchingContour VLChamferMatchingContour Finds contours in the image using Chamfer Contour Matching.
VLHOGDetectObjects VLHOGDetectObjects Detects objects by using Histogram Oriented Gradients.
VLHOGCompute VLHOGCompute Computes non optimized Histogram Oriented Gradients.
VLBackgroundSubtractor VLBackgroundSubtractor Subtracts the background using statistical background model.

Converters

ALAudioToReal ALAudioToReal Converts Wave Audio Data Buffers into Real Data Buffers
SLPair SLPair Pairs multiple data buffers together

Custom Filters

SLGenericReal SLGenericReal User defined filter for Real data
SLGenericFilter SLGenericFilter User defined filter for Binary data
SLGenericRealMatrix SLGenericRealMatrix User defined generator for Real matrix data

DirectShow Audio output components

ALDSAudioOut ALDSAudioOut Sends audio data to an audio output device

DirectShow Video output components

VLDSImageDisplay VLDSImageDisplay Video display component using DirectShow
VLDSVideoLogger VLDSVideoLogger Records Video files using DirectShow

DirectShow Video source components

VLDSCapture VLDSCapture Captures Video from device using DirectShow
VLDSVideoPlayer VLDSVideoPlayer Plays Video files using DirectShow

DirectShow support components

VLDSVideoPreviewDock VLDSVideoPreviewDock Docking location for video preview

Displays

MLDSGraphView MLDSGraphView DirectShow graph display

Generic Filters

SLGenericReal SLGenericReal User defined filter for Real data
SLGenericFilter SLGenericFilter User defined filter for Binary data
SLGenericRealMatrix SLGenericRealMatrix User defined generator for Real matrix data

Generic Generators

SLGenericGen SLGenericGen User defined generator for Binary data
SLGenericRealGen SLGenericRealGen User defined generator for Real data

Geometric transformations

VLResize VLResize Resizes the image
VLCrop VLCrop Crops the video

Other

VLDraw VLDraw Applies(draws) graphical layers over the video frames
VLSnapshot VLSnapshot Takes a snapshot frame

Signal Filters

SLGenericReal SLGenericReal User defined filter for Real data
SLGenericFilter SLGenericFilter User defined filter for Binary data
SLGenericRealMatrix SLGenericRealMatrix User defined generator for Real matrix data

Signal Generators

SLGenericGen SLGenericGen User defined generator for Binary data
SLGenericRealGen SLGenericRealGen User defined generator for Real data

Timing components

TLWatchDogTimer TLWatchDogTimer

Implements a Watch Dog Timer.

TLMainThredEvent TLMainThredEvent

Allows other threads to generate main thread notifications.

TLClockGen TLClockGen

Provides clock for other components.

Video filters

VLMorphFilter VLMorphFilter Erodes or deludes the video
VLWienerFilter VLWienerFilter Performs Wiener filter over the video
VLGenericFilter VLGenericFilter User defined filter for Video data

Video output components

VLImageDisplay VLImageDisplay Video display component
VLAVILogger VLAVILogger Records AVI Video files

Video source components

VLImageGen VLImageGen Generates video from image
VLAxisCapture VLAxisCapture Captures Video from Axis IP Camera using the Axis media control
VLCapture VLCapture Captures Video from device
VLAVIPlayer VLAVIPlayer Plays AVI Video files
VLGenericGen VLGenericGen User defined generator for Video data
VLASFPlayer VLASFPlayer Plays ASF and WMV Video Files

Video Layers

VLDrawShapeLayer VLDrawShapeLayer Layer drawing simple shapes
VLDrawTextLayer VLDrawTextLayer Layer drawing text labels
VLDrawPictureLayer VLDrawPictureLayer Layer drawing image
VLDrawMarkersLayer VLDrawMarkersLayer Layer drawing markers
VLDrawXYFloatLayer VLDrawXYFloatLayer Layer drawing X,Y points
VLImageDisplayLayer VLImageDisplayLayer Layer drawing video
VLDrawMotionsLayer VLDrawMotionsLayer Layer drawing motion grid
VLDrawLinesLayer VLDrawLinesLayer Layer drawing detected lines
VLDrawContoursLayer VLDrawContoursLayer Layer drawing detected contours
VLDrawLineSegmentsLayer VLDrawLineSegmentsLayer Layer drawing detected line segments
VLDrawCirclesLayer VLDrawCirclesLayer Layer drawing detected circles
VLDrawTrackTargetLayer VLDrawTrackTargetLayer Layer drawing tracked targets
VLDrawRobustFeaturesLayer VLDrawRobustFeaturesLayer Layer drawing detected robust features
VLDrawRectanglesLayer VLDrawRectanglesLayer Layer drawing detected rectangles.
VLDrawEllipsesLayer VLDrawEllipsesLayer Layer drawing detected ellipses.
VLDrawPolygonsLayer VLDrawPolygonsLayer Layer drawing detected polygons.
VLChamferMatchedContoursLayer VLChamferMatchedContoursLayer Layer drawing matched contours.
VLDrawDetectedObjectsLayer VLDrawDetectedObjectsLayer Layer drawing detected objects.

Matrix Layers

VLExternalImageDisplayMatrixLayer VLExternalImageDisplayMatrixLayer Matrix element drawing video

Control Element

VLExternalImageDisplayElement VLExternalImageDisplayElement Component element drawing video
