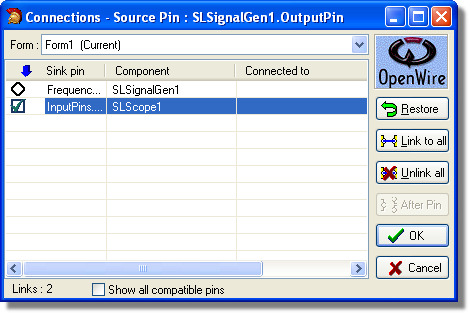

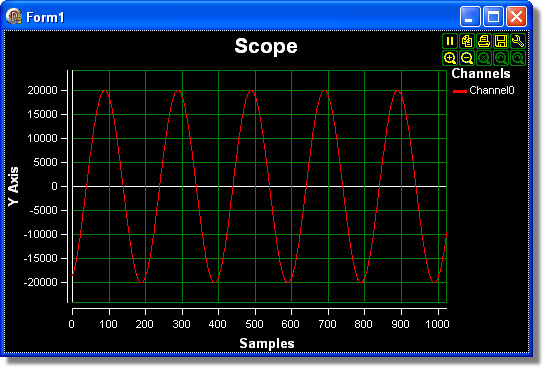

How to write a simple signal generator application with SignalLab using Delphi or C++ Builder This is a step by step tutorial for writing a simple signal generator application in Delphi or C++ Builder VCL by using SignalLab. The steps are exactly identical in Delphi or C++ Builder versions 5 to 2007. There is no code writing necessary to complete this application. There is no need to know Delphi or C++ Builder in order to create this application. The steps bellow are captured using Delphi 2007, however they are identical in C++ Builder and older versions of the products. The tutorial covers the following steps, which should take less than one minute: Add a TSLSignalGen Component to Your Application's Form Add a TSLScope Control to Your Application's Form Connect the SLSignalGen1.OutputPin to SLScope1.InputPins[0] Run the Application   1. Add a TSLSignalGen Component to Your Application's Form: 1.1. From the SignalLab tab of the component palette drop a TSLSignalGen component. 2. Add a TSLScope Control to Your Application's Form: 2.1. From the SignalLab tab of the component palette drop a TSLScope control. 2.2. Set the SLScope1 Control’s Align property to “alClient”: 3. Connect the SLSignalGen1.OutputPin to SLScope1.InputPins[0]: 3.1. Select the signalGen1 component on the form: 3.2. In the SLSignalGen1 Properties select OutputPin and click on the button: 3.2. In the connection editor check the InputPins.Channel0 of the SLScope1 and click OK: 4. Run the Application: 4.1 Press (F9) to run the application. You should see the wave form on the scope: Here is a diagram of the OpenWire connections in this application:
